Watkins Protection Mode Explained (Hot Spring, Limelight, Hot Spot & Caldera Spas)
If you’re searching for Hot Spring Protection Mode, Limelight Protection Mode, Hot Spot Protection Mode, or Caldera Protection Mode, you’re in the right place. These brands are manufactured by Watkins Wellness and use similar protection systems.
If your hot tub display shows Protection Mode, don’t panic. Protection Mode is not usually an indication that a major component has failed. Instead, it is a safety feature built into many Watkins Wellness spas to help prevent damage when the control system detects conditions that could potentially harm the equipment.
This guide explains what Protection Mode means, what causes it, and what you should check before calling a technician.

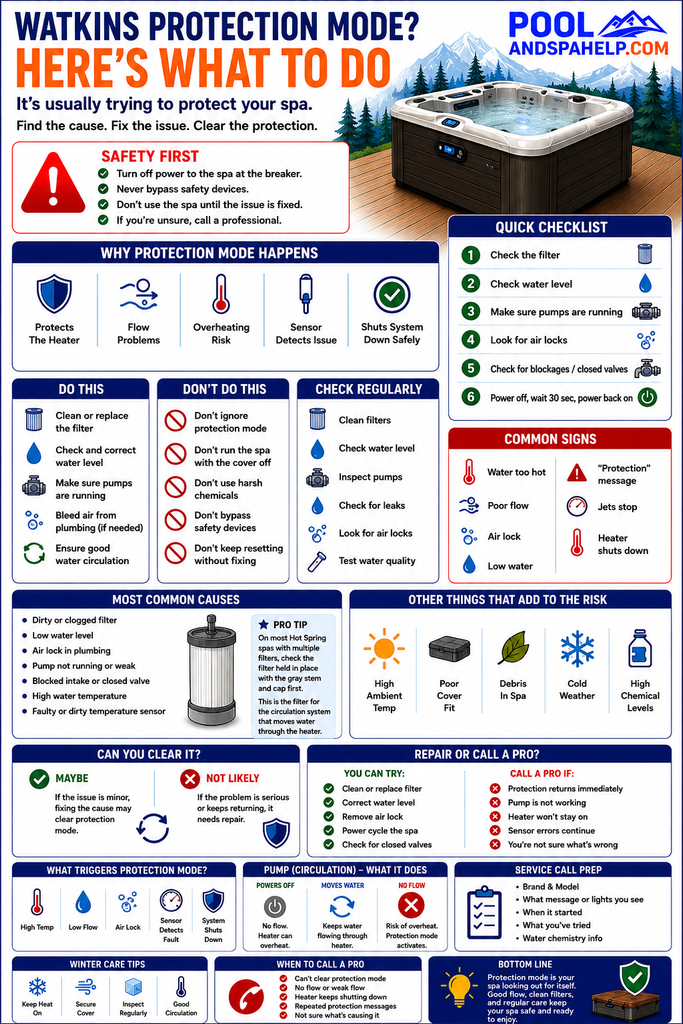

Quick Hot Spring Protection Mode Troubleshooting.
Note: You may have to cycle the power by turning the breaker off then back on after each step to clear the protection mode status
Protection Mode Displayed
⬇️
Check Water Level
- Low → Fill spa and retest
- Normal → Continue
⬇️
Remove & Clean Filters
- Dirty/clogged → Clean or replace filters
- Filters clean → Continue
⬇️
Check for Water Flow
- Weak or no flow → Continue below
- Good flow → Skip to Temperature Sensors
(Related page: Hot Tub Flow Issues? (FLO, FL1, FL2, LF) Causes & Fixes)
⬇️
Inspect Circulation Pump
- Not running → Check breaker, fuse, wiring, capacitor, or pump
- Running normally → Continue
(Related Articles: Hot Tub Pump Has No Power, Hot Tub’s Pump Isn’t Starting? 10 Common Causes and How to Fix Them)
⬇️
Check for Air Lock
- Air lock found → Bleed air and retest
- No air lock → Continue
⬇️
Inspect for Flow Restrictions
- Blocked suction fittings
- Debris in plumbing or heater
Problem found?
- Yes → Correct issue and retest
- No → Continue
⬇️
Check Temperature Sensors
- Faulty sensor found → Replace sensor
- Sensors appear normal → Continue
⬇️
Power Cycle Spa
- Turn breaker OFF
- Wait 30 seconds
- Turn breaker ON
Protection Mode cleared?
- Yes → Monitor spa
- No → Continue
⬇️
Professional Diagnosis Recommended
- Failed circulation pump
- Sensor issues
- Heater problems
- Control board issues
What Is Protection Mode?
Protection Mode is a safety shutdown used by many Watkins Wellness brands, including:
- Hot Spring Spas
- Limelight Spas
- Hot Spot Spas
- Caldera Spas
- Freeflow Spas (some models)
When Protection Mode activates, the spa temporarily stops normal operation to protect the heater, pumps, plumbing, or electronic components from damage.
The exact behavior varies depending on the model and year of the spa, but Protection Mode is most commonly triggered when the system detects:
- Low water flow
- Overheating conditions
- Freeze protection concerns
- Temperature sensor issues
- Circulation pump problems
In many cases, the spa will resume normal operation once the underlying issue is corrected.
Common Causes of Protection Mode
Dirty or Restricted Filters
One of the most common causes is reduced water flow caused by dirty filters.
As filters become clogged with debris, the circulation pump may struggle to move enough water through the heater. The control system can interpret this as a flow problem and activate Protection Mode.
What to check:
- Remove and clean the filters
- Inspect for damaged filter cartridges
- Temporarily operate the spa with the filters removed for testing
If Protection Mode disappears with the filters removed, the filters are likely the problem.
Low Water Level
Low water levels can allow air to enter the circulation system.
Air trapped in the plumbing may reduce water flow through the heater, causing the control system to activate Protection Mode.
What to check:
- Water should be high enough to properly flow into the filter compartment
- Verify the skimmer area remains submerged
- Add water if necessary
Air Lock in the Plumbing
An air lock can occur after:
- Draining and refilling the spa
- Replacing a pump
- Performing plumbing repairs
When air becomes trapped in the plumbing system, water circulation may be restricted or completely blocked.
Signs of an air lock include:
- Weak water movement
- Circulation pump running but little or no flow
Bleeding trapped air often resolves the issue.
Circulation Pump Problems
Many Watkins spas use a dedicated circulation pump that runs continuously.
If the circulation pump fails, becomes clogged, or receives insufficient power, water flow through the heater may stop.
Potential causes include:
- Failed circulation pump motor
- Debris in the impeller
- Blown fuse
A failed circulation pump is one of the more common reasons Protection Mode repeatedly returns.
Heater Flow Restrictions
Even if the circulation pump is operating correctly, restrictions elsewhere can reduce flow.
Check for:
- Kinked plumbing lines
- Debris in the heater assembly
- Blocked suction fittings
Any restriction that reduces water movement through the heater can trigger protective shutdowns.
Temperature Sensor Issues
Watkins spas use temperature sensors to monitor water temperature and heater conditions.
If a sensor provides inaccurate readings or fails completely, the control system may enter Protection Mode as a precaution.
Possible symptoms include:
- Incorrect temperature readings
- Intermittent Protection Mode messages
- Unexplained heating issues
Sensor diagnosis often requires electrical testing.
Overheating Conditions
Protection Mode may activate if the spa water or equipment compartment becomes excessively hot.
Common causes include:
- Restricted water flow
- Stuck relays
- Pump running continuously
- Extremely high ambient temperatures
The system may automatically shut down heating functions until temperatures return to a safe range.
How to Reset Protection Mode
In many cases, Protection Mode clears automatically after the problem is corrected.
You can also try the following:
- Turn off power at the breaker.
- Wait approximately 30 seconds.
- Restore power.
- Allow the spa to complete its startup sequence.
If Protection Mode returns immediately, the underlying problem has not been resolved.
When to Call a Technician
You should consider professional service if:
- Protection Mode returns repeatedly
- The circulation pump is not running
- The spa will not heat
- Error messages accompany Protection Mode
- You suspect a failed sensor or circuit board
A technician can perform electrical testing to determine whether a pump, sensor, heater, or control component has failed.
Frequently Asked Questions
Why Does My Hot Spring Spa Say Protection Mode?
Protection Mode on a Hot Spring spa is usually caused by low water flow, dirty filters, a circulation pump problem, trapped air, or a sensor issue. The spa enters Protection Mode to prevent damage to the heater and other components until the problem is corrected.
Is Protection Mode the same as an error code?
Not exactly. Protection Mode is a safety operating state rather than a specific fault code. It indicates the spa is protecting itself from a condition that could cause damage.
Can I still use the hot tub in Protection Mode?
Most spas limit normal operation while Protection Mode is active and the spa will not be heating. It’s best to identify and correct the cause before continuing to use the spa.
Will Protection Mode damage my hot tub?
No. Protection Mode is designed to prevent damage. Ignoring the underlying issue, however, could eventually lead to component failure.
Protection Mode is a built-in safety feature found on many Watkins Wellness spas, including Hot Spring, Limelight, Hot Spot, and Caldera models. In most cases, the problem is related to water flow, dirty filters, low water levels, air locks, circulation pump issues, or temperature sensor problems.
Start with the simple checks first—filters, water level, and circulation—and you’ll often find the cause without replacing any parts.
