If your hot tub pump isn’t running at all and shows no signs of life, the issue is often electrical rather than mechanical. A pump that isn’t receiving power can be caused by anything from a tripped breaker to a failed control board. The good news is that many of these problems can be identified with a few basic checks before replacing expensive parts.
Safety Notice: This article is provided for informational purposes only. RV systems may include electrical, propane, plumbing, and mechanical components that can pose serious safety risks. Always follow manufacturer guidelines and proper safety procedures. When in doubt, seek assistance from a qualified technician.

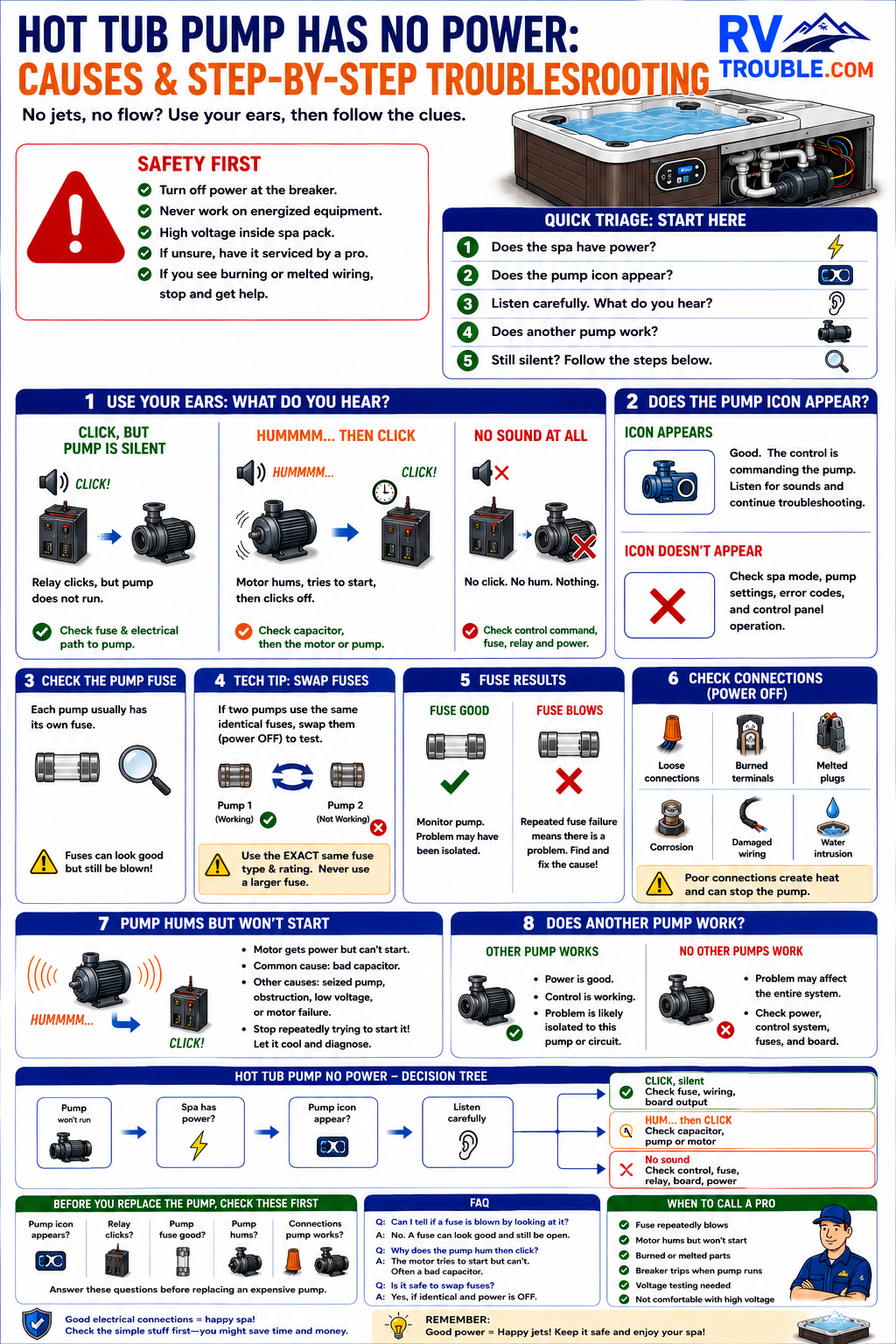

This guide walks through the most common reasons a hot tub pump may not be getting power, starting with the simplest causes and working toward more advanced electrical failures.
Symptoms of a Hot Tub Pump With No Power
- Pump does not turn on at any speed
- No humming or clicking sounds from the pump
- Pump does not respond to control panel commands
- Heater may display a flow or circulation error
- Other components (lights, control panel) may or may not be working
If the pump is completely silent, power is either not reaching the pump or is being intentionally blocked by a safety system.
1. Tripped Breaker or GFCI
One of the most common reasons a hot tub pump has no power is a tripped breaker or GFCI.
Hot tubs typically use:
- A main breaker at the electrical panel
- A GFCI breaker or disconnect near the tub
If either trips, power to the pump may be cut off while other components appear normal.
What to check:
- Reset both the main breaker and the GFCI
- Make sure the breaker stays reset
- If it trips immediately, disconnect the pump and try again
If the breaker holds with the pump disconnected, the pump or its wiring may be shorted.
2. Emergency Shutoff or Service Switch Turned Off
Some hot tubs include a service disconnect or internal safety switch that cuts power during maintenance.
What to check:
- Look for a service switch inside the equipment compartment
- Make sure it is fully engaged
- Check for external emergency shutoff switches nearby
This is easy to overlook after recent service or cleaning.
3. Blown Fuse on the Control Board
Many hot tub control boards use fuses to protect pumps and other components.
A blown fuse can completely stop power from reaching the pump while everything else still works.
What to check:
- Turn off all power to the hot tub
- Locate the control board
- Look for a 20, 25 or 30 amp fuse
If a replacement fuse blows immediately, there is likely a short in the pump, wiring, or control board
4. Faulty Pump Relay on the Control Board
The control board sends power to the pump through a relay. If the relay fails, the pump will never receive voltage even though the board appears to be working.
Signs of a bad relay:
- Control panel shows pump is on, but pump does nothing
- No voltage present at pump terminals
- Clicking sound missing when pump is activated
Relay failure is common in older tubs or tubs exposed to moisture and heat.
5. Burned or Loose Wiring Connections
Loose or burned wires can interrupt power between the control board and the pump.
What to check:
- Inspect pump wiring terminals
- Look for melted insulation or discoloration
- Tug gently on wires to ensure they are secure
- Check wiring at the control board and pump motor
Any sign of overheating indicates resistance or a failing connection
6. High-Limit or Safety Sensor Lockout
If the hot tub detects unsafe conditions, it may intentionally cut power to the pump.
Common triggers include:
- Overheating
- Dry firing (no water flow)
- Faulty temperature or pressure sensors
In these cases, the pump may not receive power even though it is not defective.
What to check:
- Look for error codes on the display
- Reset power and observe startup behavior
- Check water level and filters
Some safety faults require replacing the sensor to restore pump operation.
7. Failed Control Board
If all external components check out, the control board itself may be defective.
Signs of a failing control board:
- No output voltage to the pump
- Burn marks on the board
- Corrosion from moisture exposure
- Random or inconsistent behavior
Control boards are expensive, so this should be confirmed with voltage testing before replacement.
8. Pump Motor Internal Failure
In some cases, the pump itself may be preventing power from flowing due to an internal short.
What to check:
- Disconnect the pump and reset the breaker
- Measure resistance across motor windings
- Check for signs of water intrusion
A shorted motor can trip breakers or cause control board fuses to fail.
9 Bad Pump Capacitor
A pump needs lots of power to start. A capacitor stores electricity in order to give the pump a boost to start.
If you hear a humming sound from the pump then a click then nothing, there’s a good probability that you have a bad capacitor. These can be found either on the top or back of the pump. Please be careful if handling capacitors as the do carry a rather large charge that can be extremely dangerous.
When to Call a Professional
You should contact a qualified technician if:
- Breakers trip immediately after reset
- Voltage testing is required and you are not trained
- The control board shows visible damage
- You suspect wiring inside the conduit or panel
Electrical troubleshooting carries serious shock risk if performed incorrectly.
How to Prevent Power Issues in the Future
- Keep equipment compartment dry and well-ventilated
- Replace filters regularly to maintain proper flow
- Address error codes immediately
- Tighten electrical connections during routine maintenance
- Use surge protection if your area experiences power fluctuations
Preventive maintenance greatly reduces electrical failures over time.
When a hot tub pump isn’t getting any power, the issue is usually electrical rather than mechanical. By starting with simple checks like breakers and fuses and working toward control board diagnostics, you can often pinpoint the problem without unnecessary part replacements.
If you’re unsure at any point, stopping and calling a professional is always safer than guessing with electricity.
Other Articles You May Be interested in Reading:
Written by Dan Harvickson, pool & spa repair technician.
;
