Why Your Hot Tub Keeps Tripping the Breaker — 8 Common Causes
Safety Notice: This article is provided for informational purposes only. RV systems may include electrical, propane, plumbing, and mechanical components that can pose serious safety risks. Always follow manufacturer guidelines and proper safety procedures. When in doubt, seek assistance from a qualified technician.
When dealing with a tripping breaker, I strongly suggest hiring a qualified technician. Also DO NOT bypass any breakers or other safety components.
A hot tub that constantly trips the breaker is one of the most frustrating issues owners face. You may notice the spa shuts off randomly, won’t power on for long, or instantly kills the GFCI breaker when you try to reset it. This happens when the electrical system detects a fault significant enough to shut everything down for safety.
The good news is that most causes are common, diagnosable, and fixable without replacing your entire spa. In this article, you’ll learn the most frequent reasons why a hot tub trips its breaker, what symptoms to watch for, and step-by-step instructions to troubleshoot each issue safety.

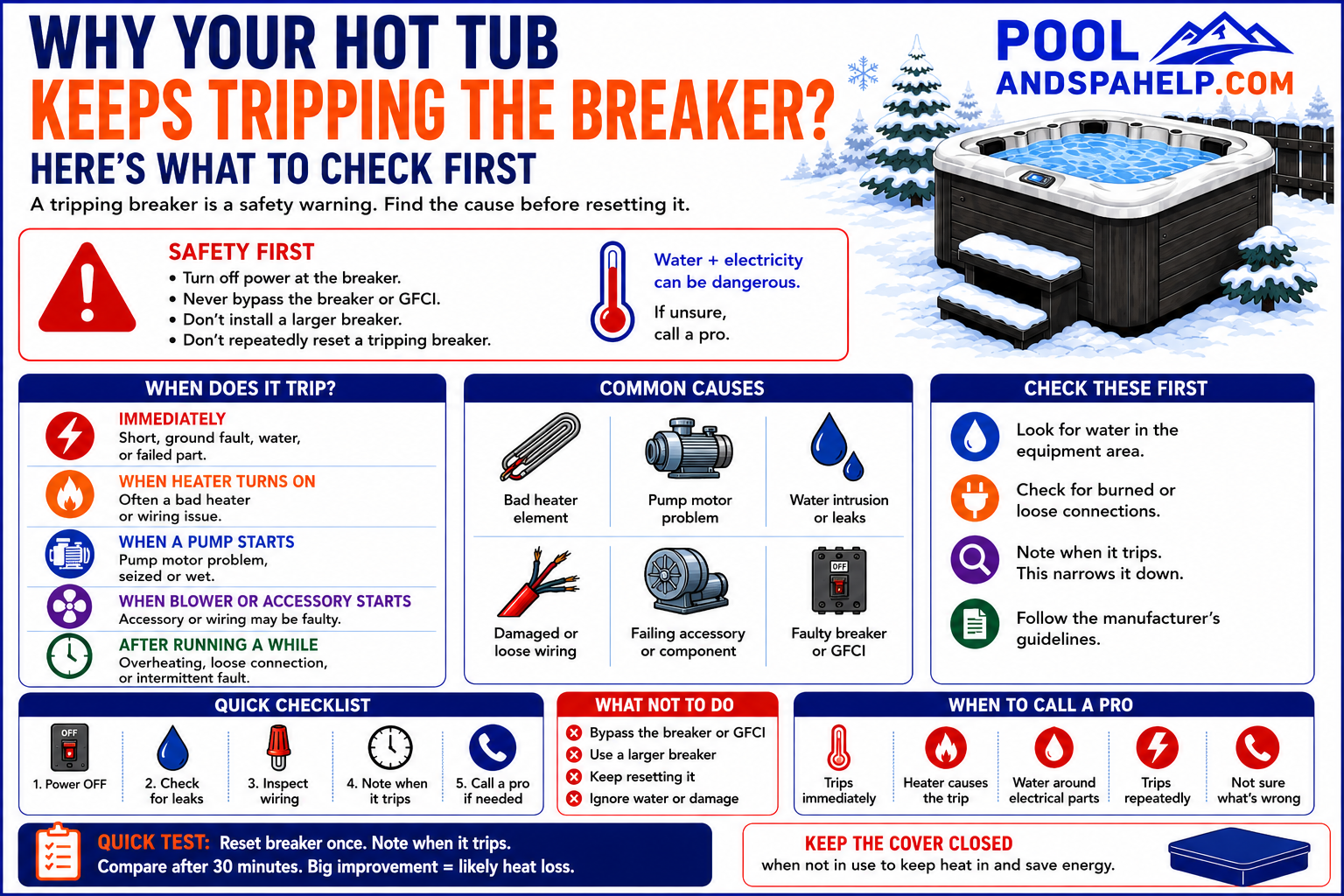

Common reasons for a tripping breaker:
- Bad heating element
- Water inside electrical components
- Bad pump motor
- Shorted or Failing Control Board
- Faulty GFCI
- Ozonator
- Damaged wiring
- New install
Keep reading for more information about these issues.
Symptoms of a Hot Tub Tripping the Breaker
You may notice one or more of the following:
* Breaker trips immediately when you press the reset button
* Hot tub runs for a few minutes, then shuts off
* Pump or heater tries to turn on right before the breaker trips
* Burning smell near the spa control box
* Water temperature drops because the heater isn’t staying powered
* GFCI test button works, but the tub still shuts off during operation
* Breaker won’t reset unless you disconnect certain components
—
1. Faulty Heater Element
I find that the heating element is probably the biggest reason for a tripping breaker. If you do decide to replace the element, getting it replaced by a qualified technician is strongly recommended.
The heater element warms the water as it flows through the heater tube. Over time, corrosion, scale buildup, or age can cause the element to fail internally. A faulty heater element is the most common reason for a tripping breaker.
How It Causes a Breaker Trip
A compromised heater element can develop a short to ground, meaning electricity leaks into the metal housing rather than staying within the circuit. The GFCI breaker senses this unsafe flow and trips instantly.
Step-by-Step Fix
1. Turn off all power at the breaker.
2. Open the spa control pack to access the heater assembly.
3. Disconnect the heater terminals (usually two spade connectors or nuts).
4. Turn the breaker on with the heater disconnected.
* If the breaker stops tripping, the heater is the problem.
5. Replace the heater element or entire heater assembly.
6. Restore connections and test again.
When to Call a Pro
* If the heater terminals are melted or scorched
* If water is leaking around the heater tube
* If you’re not comfortable opening the control box
—
2. Water Inside Electrical Components
What It Is
Moisture can enter the control pack, junction boxes, sensors, or wiring harnesses due to condensation, leaks, or flooding inside the spa cabinet.
How It Causes a Breaker Trip
Water creates pathways for electrical current to reach ground. Even a few drops can cause a GFCI trip, especially when pumps start up.
Step-by-Step Fix
1. Cut all power to the hot tub.
2. Inspect the cabinet for signs of leaks, dampness, or water trails.
3. Check around:
* Pump seals
* Heater unions
* Ozone generator
* Water manifold
4. Dry components with a towel and allow them to air-dry for 24–48 hours.
5. Once dry, try resetting the breaker.
6. Repair any leak sources (loose unions, cracked plumbing, worn pump seals).
When to Call a Pro
* If the control board shows signs of water damage
* If drying doesn’t resolve the issue
* If a persistent leak is coming from behind the shell
—
: 3. Bad Pump Motor or Seized Bearings
What It Is
Your spa’s circulation pump and jet pumps use electric motors that can wear out with age. Bearings can seize, windings can short, and motors can draw excessive current.
How It Causes a Breaker Trip
A failing motor pulls too much amperage, which the breaker detects as unsafe. You’ll often hear the pump try to start before everything shuts down.
Step-by-Step Fix
1. Shut off power.
2. Disconnect one pump at a time from the control board.
3. Turn power back on.
* If the breaker stops tripping after disconnecting a specific pump, that pump is the problem.
4. Check the pump shaft by spinning the impeller. If it’s stiff or noisy, the bearings are likely bad.
5. Replace the pump or motor assembly.
When to Call a Pro
* If the pump hums loudly but won’t start
* If the pump is leaking around the shaft
* If wiring to the pump looks overheated or brittle
—
4. Shorted or Failing Control Board
What It Is
The control board (also called the spa pack or motherboard) handles everything from heating cycles to pump timing. Age, moisture, pests, and corrosion can all damage the board.
How It Causes a Breaker Trip
A shorted relay or burned circuit pathway forces electricity where it shouldn’t go. When pumps or heaters activate, the breaker trips instantly.
Step-by-Step Fix
1. Turn off power and open the control box.
2. Look for:
* Burn marks
* Melted solder
* Corroded connectors
* Swollen capacitors
3. Smell for a burnt-electronics odor—this is common with failed boards.
4. Disconnect nonessential components (ozone, lights, auxiliary pumps) and test again.
5. If the breaker still trips, replace the control board.
When to Call a Pro
* If you see scorch marks
* If you’re unsure which board model you need
* If you need help transferring the heater and components
—

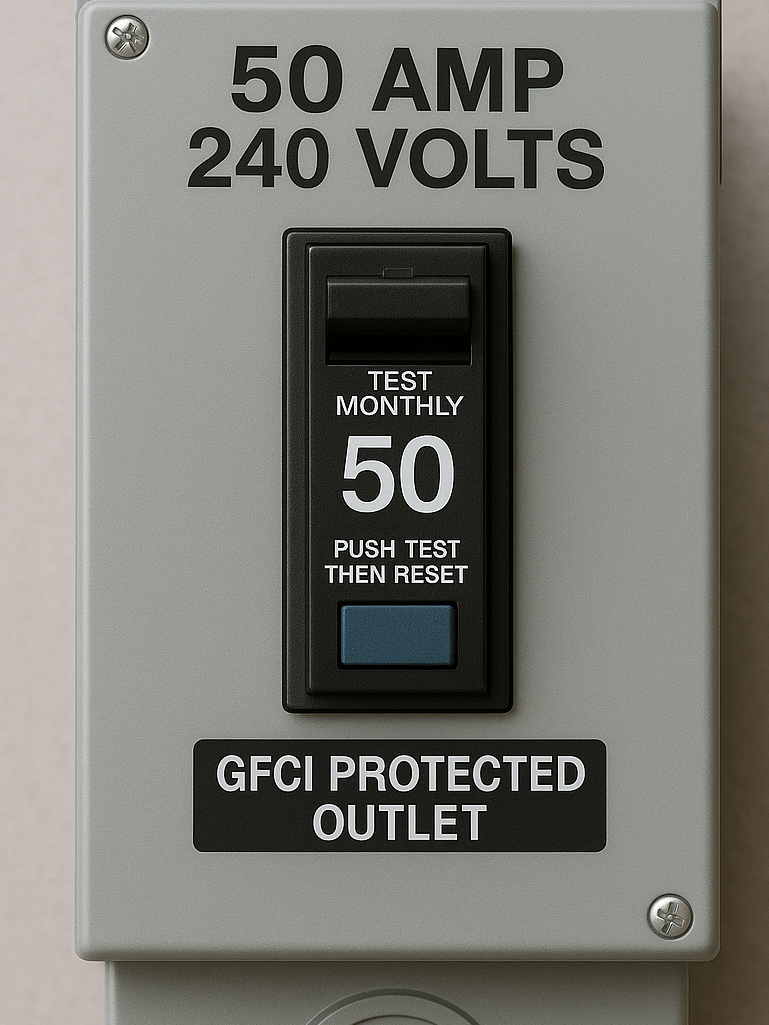

5. Faulty GFCI Breaker or Incorrect Wiring
What It Is
The Ground Fault Circuit Interrupter (GFCI) breaker protects you from electrical shock. Over time, they can weaken, misread current flow, or fail completely.
How It Causes a Breaker Trip
A weak or faulty breaker can trip even if nothing is wrong with the spa. Incorrect wiring (neutral-ground faults, shared circuits, reversed lines) can also cause immediate shutoff.
Step-by-Step Fix
1. Turn off all power.
2. Inspect wiring for loose or corroded connections.
3. Ensure the spa is on a dedicated 240V circuit with no shared neutrals.
4. Reset the breaker.
5. If it trips instantly with all spa components disconnected, the breaker is bad.
6. Replace the GFCI breaker with the exact same amperage rating.
When to Call a Pro
* If you suspect wiring issues
* If you aren’t familiar with electrical work
* If the breaker panel shows signs of overheating
—
6. Ozone Generator or UV Sanitizer Failure
What It Is
Many hot tubs use ozone or UV systems to reduce chlorine demand. These units plug directly into the control pack.
How It Causes a Breaker Trip
A failing ozone generator can short out internally and trip the GFCI as soon as it receives power.
Step-by-Step Fix
1. Turn off power.
2. Disconnect the ozone generator’s plug from the control board.
3. Turn power back on.
* If the breaker no longer trips, the ozone unit is faulty.
4. Replace the ozone generator or UV unit.
When to Call a Pro
* If your ozone tubing is melted
* If the ozone check valve failed and allowed water intrusion
* If multiple components appear damaged
—
7. Loose, Damaged, or Corroded Wiring
What It Is
Electrical wiring inside a hot tub can degrade from age, vibration, rodents, or heat exposure.
How It Causes a Breaker Trip
Loose or frayed wires cause intermittent shorts. Corroded terminals can overheat and create unpredictable electrical paths, forcing the breaker to trip.
Step-by-Step Fix
1. Shut off all power.
2. Inspect inside the control panel for:
* Loose screws at terminal blocks
* Burned connectors
* Rodent-chewed wiring
* Green or white corrosion
3. Tighten all terminal screws securely.
4. Replace damaged wiring sections.
5. Ensure cords are not touching hot components like the heater tube.
When to Call a Pro
* If you smell burning insulation
* If wires are melted together
* If major wiring needs replacement
8. New Install
If the hot tub is a brand new install, it is very common for the GFCI to be miswired. Even the most experienced electrician can make this mistake.
What I find is that the neutral wire going to the hot tub gets wired into the neutral bar in the panel or sub-panel. With normal breakers, this is correct. But with GFCI breakers The neutral wire going to the hot tub MUST be attached to the GFCI (where it’s labeled: “load neutral”)
A 240V gfci constantly measures the amperage on line 1 and line 2, if the neutral wire is not connected to the GFCI, the breaker can’t properly monitor the amperage between both lines and trip right away.
When to Call a Professional
Call a licensed spa technician or electrician if:
1. The breaker trips instantly even when components are disconnected
2. You see burn marks, melting, or scorched wiring
3. You’re uncomfortable working around electrical systems
Working with water and electricity can be dangerous, so never push beyond what feels safe.
How to Prevent Breaker Trips in the Future
* Fix leaks quickly to prevent water from reaching electrical components.
* Maintain proper water chemistry to reduce corrosion inside the heater and sensors.
* Clean your filters regularly so pumps don’t strain and overheat.
* Inspect wiring annually for corrosion, rodents, and loose connections.
